Curved Glass Products

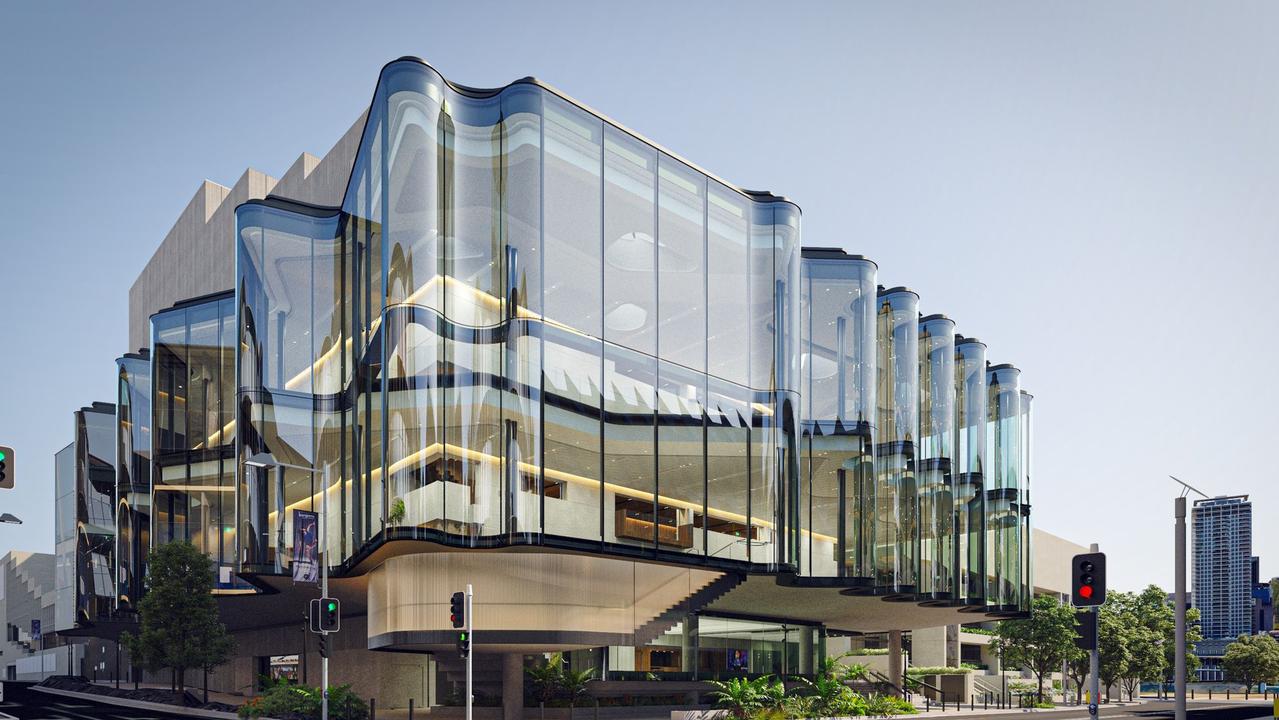

Curved Glass is an essential element of modern, free form architecture. To meet the current market requirements NorthGlass

Curved Glass is produced by using three different production processes. This enables NorthGlass to produce curved glass of the

highest quality and best safety characteristics for each individual project.

Depending on the glass build up, coatings and bending geometry, dimensions of 3.6 m x 18.0 m are achievable.

FT or HS : cylindrical curved, heat strengthened glass.

AN : annealed, gravity bent glass.

CB : cold bend glass which is bent during the lamination process.

Maximum Size:

Bending & Tempering with Flexible Rollers: 3600mm(Arc length)×18000mm, 2440mm(Arc length)×5000mm (concave)

Bending & Tempering with Rigid Rollers: 8000mm(Arc length)×4000mm, 2500mm(Arc length)x4000mm (concave)

Minimum Size: 600mm(Arc length)×400mm

Minimum radius of curvature : 450mm

Thickness: 4mm-19mm
